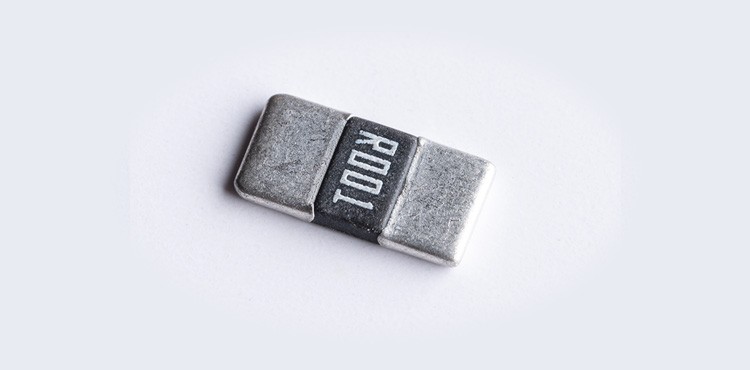

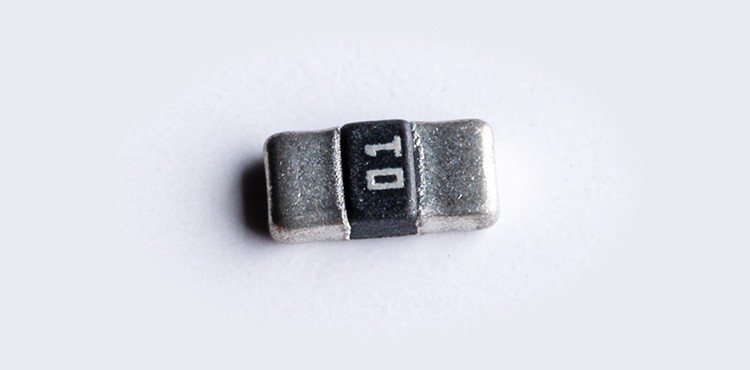

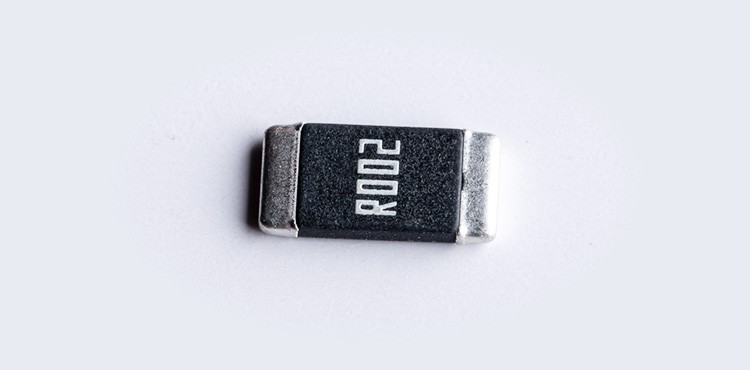

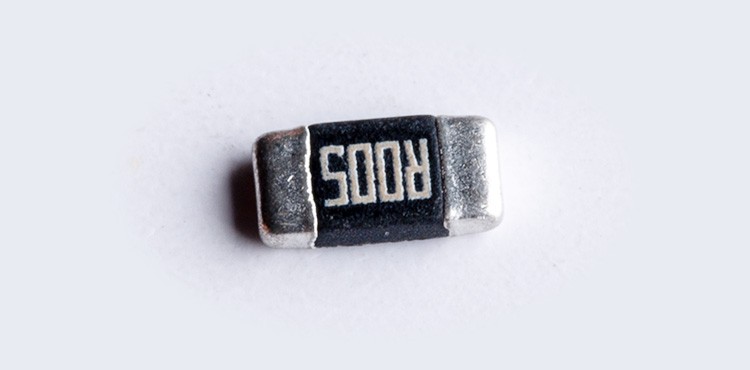

Alloy chip resistor

●Alloy chip resistor:a resistor using alloy (main copper alloy) as current medium.

Enquiry number：86-512-6373 9013

Product Features

Alloy chip resistor: a resistor using alloy (main copper alloy) as current medium.
Classification of alloy resistor: chip alloy resistor and plug-in alloy resistor;
Alloy resistor characteristics: low resistance value, high precision, low temperature coefficient, impulse current resistance, and high power;
Application of alloy resistor: current sampling and short circuit protection.

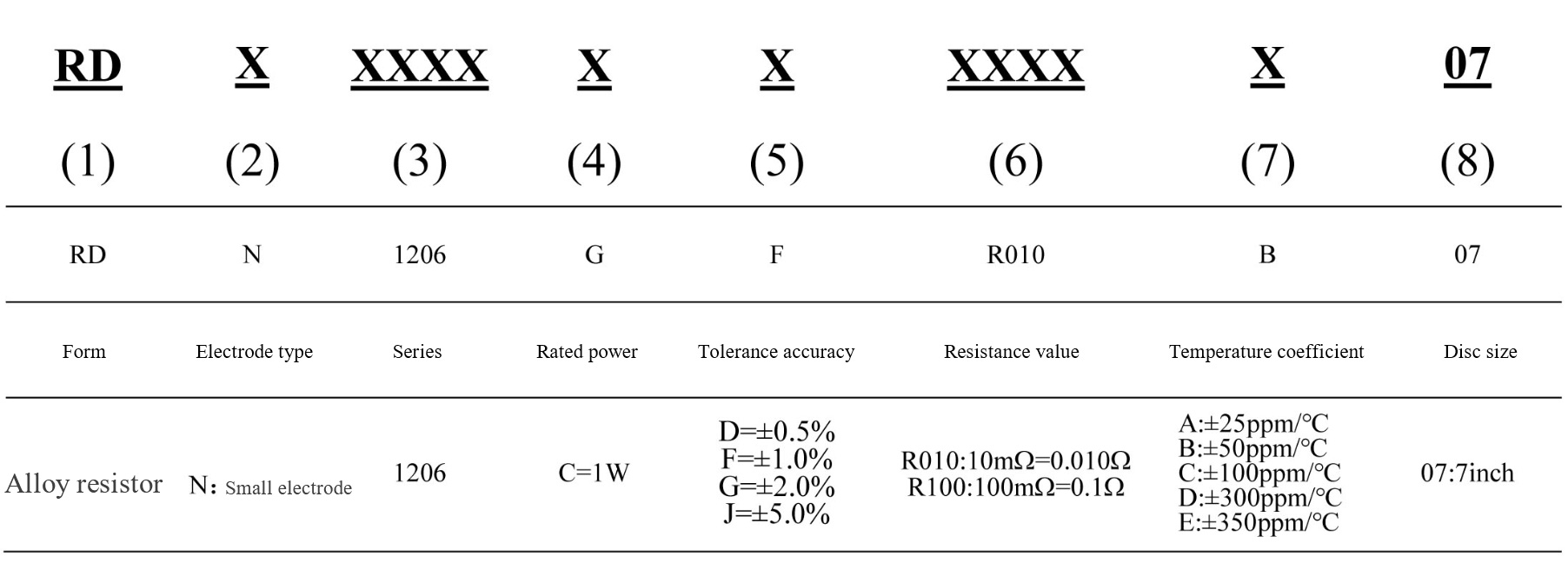

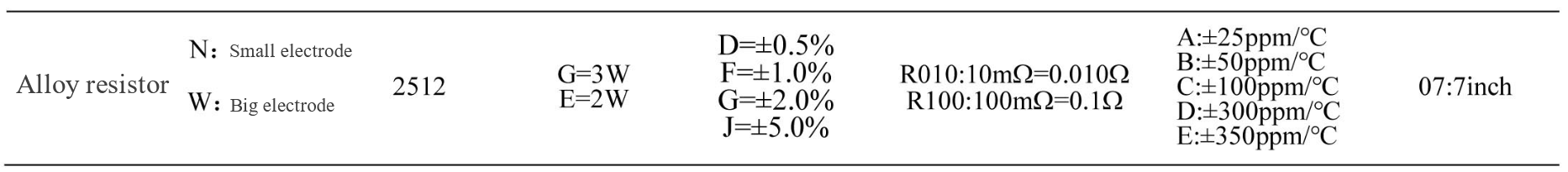

Specification and model description

RDX series high power alloy sampling resistor, using lead-free, halogen-free epoxy resin with low resistance value and has the feature of anti-vulcanization in accordance with RoHS standard.

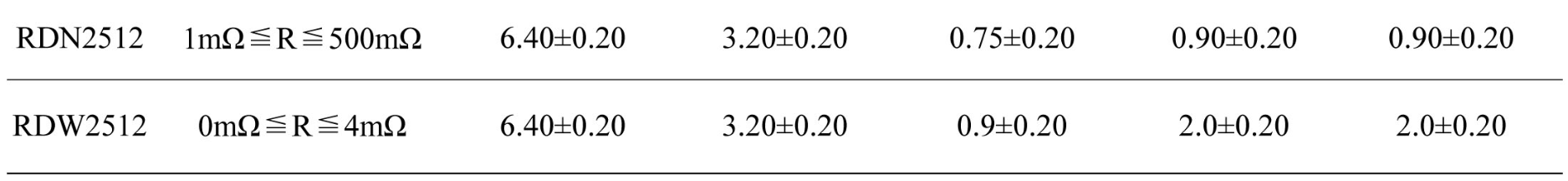

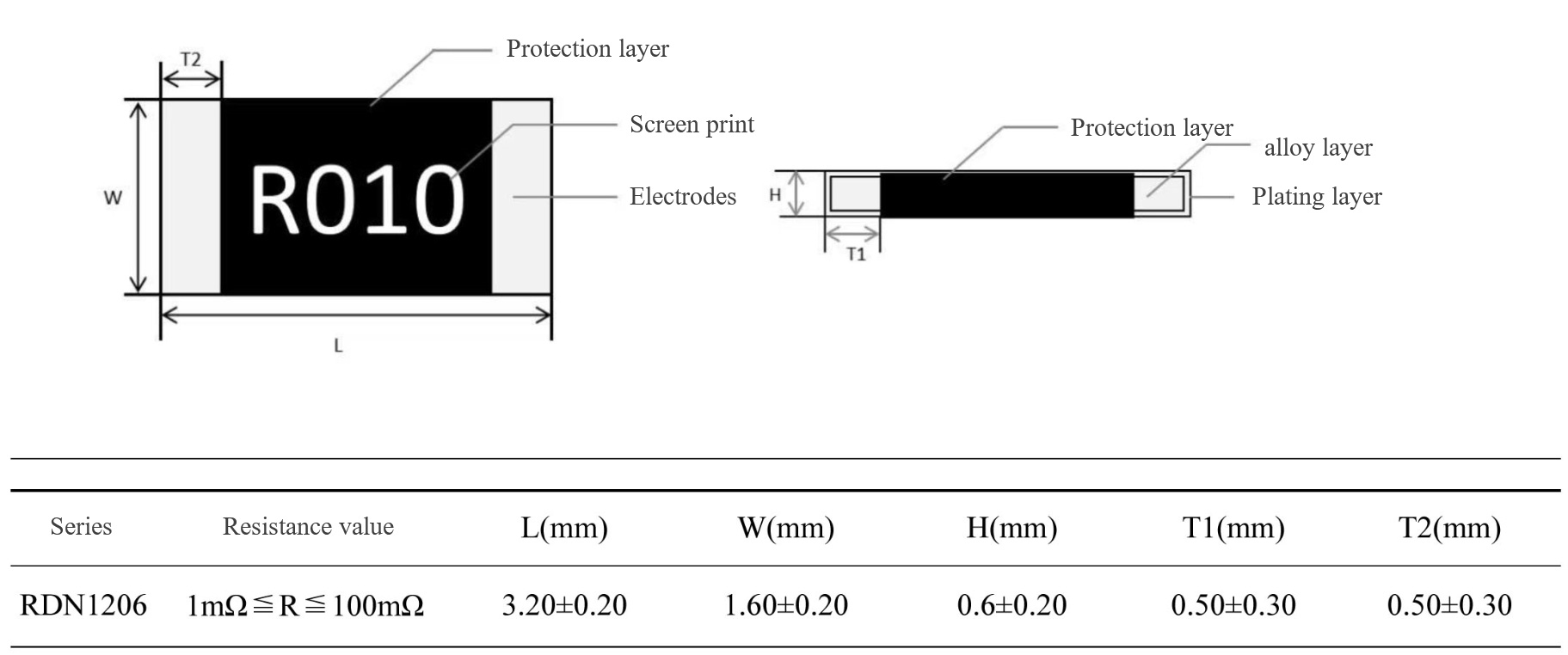

Size and structure

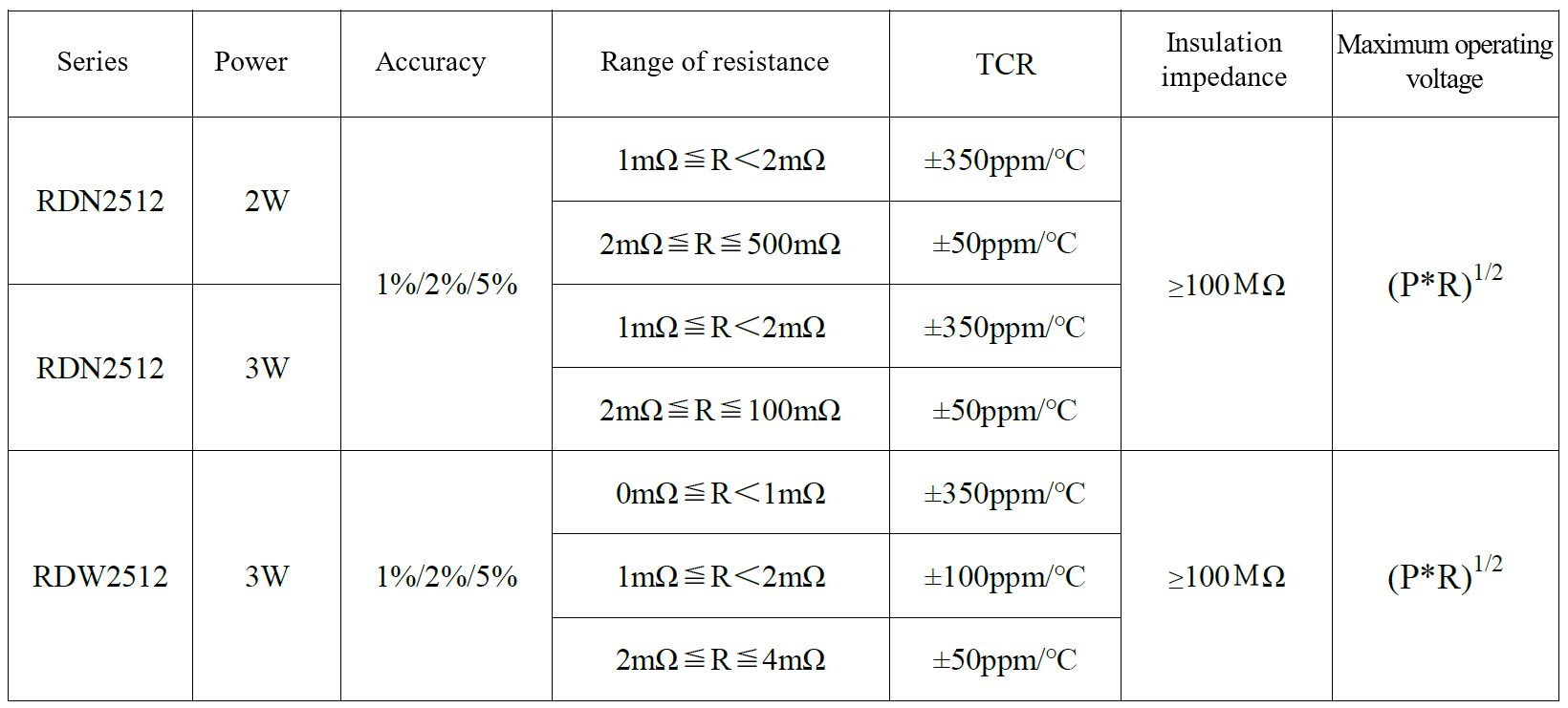

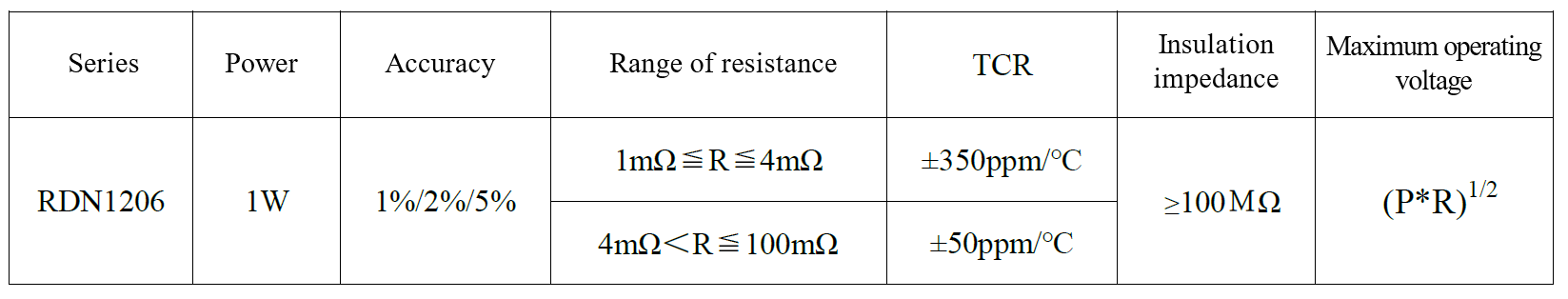

Physical Properties

Reliability test

Temperature curve

Rated current

The rated current can be calculated by the below formula I =√P/R

I=Rated current (A)

P=Rated power (W)

R=Resistance (Q)

Pad size

Reflow soldering

Character representation

The resistance value identification of the product is generally a 4-character code. The following two common expressions are given below.
（1）Use “R” for decimal point of “Ω”, and the number following “R” is a valid number.
Example: The product code of 5mΩ is R005
The product code of 50mΩ is R050
The product code of 100mΩ is R100
（2）Use “m” for decimal point of “mΩ”, and the number following “m” is a valid number.

Example: 0.5mΩ product code is 0m50
The product code of 1.5mΩ is 1m50
The product code of 15.5mΩ is 15m5

Packaging Specifications

Precautions for product use

Avoid using the power exceeding the normal rated power during the process, otherwise it may affect the reliability and stability of the product;
Product storage conditions: temperature: 5°C-35°C, humidity: 40%-75%;
The products shall be protected from direct sunlight. Do not store them in the open airand the places with corrosive gases.
It is strictly prohibited to fall or squeeze the box body to keep the correct orientation of the box body during the handling and storage of products;
Care shall be taken to protect the product package and electrode parts when grasping the product with tweezers.
